3412 N | ebm-papst

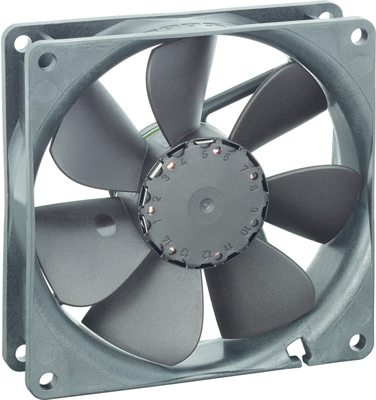

DC axial fan, 12 V, 92 x 92 x 25 mm, 82 m³/h, 32 dB, ball bearing, ebm-papst 3412 N

Order No.: 90B1432
EAN: 4099889481471
MPN:
3412 N
9292506324
Series: 3400 N
ebm-papst
3412 N ebm-papst Axial Fans
Image may differ
Unit Price (€ / pc.)
49.8491 € *
Available: 3 pcs.
Leadtime: 2 Weeks **
Total Price:
49.85 € *
Price list
Quantity
Price per unit*
1 pcs.
49.8491 €
5 pcs.
46.8622 €
15 pcs.
45.0772 €
50 pcs.
43.0780 €
150 pcs.
41.2811 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC Axial fan, 3412 N, EBM-PAPST

The 3412 N is a compact, quiet and efficient this not only saves energy, but also means less self-heating of the motor. The bearing system in particular reacts positively to the low self-heating the reason why the fan can achieve up to 85% longer service life.

Features

  • Connection via single strands AWG 24, TR 64, bared and tin-plated
  • Electronic commutation completely integrated
  • Protected against reverse polarity and blocking
  • With protection class: IP54/IP68
Technical specifications
Version DC axial fan
Width 92 mm
speed 2700 1/min
Height 92 mm
Type of bearing ball bearing
Power consumption 2.2 W
Rated voltage 12 V
Sound pressure level 32 db
Depth 25 mm
Volume flow 82 m³/h
Logistics
Country of origin HU
Customs tariff number 84145925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
