3412 NH | ebm-papst

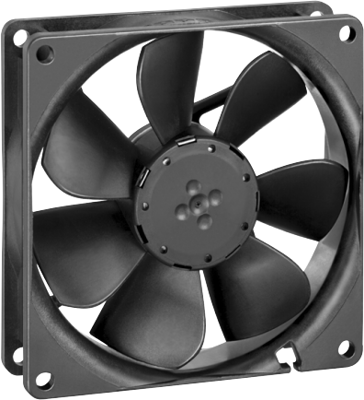

DC axial fan, 12 V, 92 x 92 x 25 mm, 94 m³/h, 36 dB, ball bearing, ebm-papst 3412 NH

Order No.: 90B183
EAN: 4099889482249
MPN:
3412 NH
9292506323
Series: 3400 N
ebm-papst
3412 NH ebm-papst Axial Fans
Image may differ
Unit Price (€ / pc.)
60.2735 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
60.27 € *
Price list
Quantity
Price per unit*
1 pcs.
60.2735 €
5 pcs.
56.6559 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC Axial fan, 3412 NH, EBM-PAPST

The 3412 NH is a compact, quiet and efficient this not only saves energy, but also means less self-heating of the motor. The bearing system in particular reacts positively to the low self-heating the reason why the fan can achieve up to 85% longer service life.

Features

  • Connection via single strands AWG 24, TR 64, bared and tin-plated
  • Protected against reverse polarity and blocking
  • Direction of rotation clockwise, viewed toward rotor
  • With protection class: IP54/IP68
Technical specifications
Version DC axial fan
Width 92 mm
speed 3000 1/min
Height 92 mm
Type of bearing ball bearing
Power consumption 2.1 W
Rated voltage 12 V
Sound pressure level 36 db
Depth 25 mm
Volume flow 94 m³/h
Logistics
Country of origin HU
Customs tariff number 84145925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
