3412 NME | ebm-papst
DC axial fan, 12 V, 92 x 92 x 25 mm, 72 m³/h, 28 dB, ball bearing, ebm-papst 3412 NME
Unit Price (€ / pc.)
49.8491 € *
Available: 46 pcs.
Leadtime: 2 Weeks **
Total Price:
49.85 € *
Price list
Quantity
Price per unit*
1 pcs.
49.8491 €
5 pcs.
46.8622 €
15 pcs.
45.0772 €
50 pcs.
43.0780 €
150 pcs.
41.2811 €
*incl. VAT plus shipping costs
**Subject to prior sale

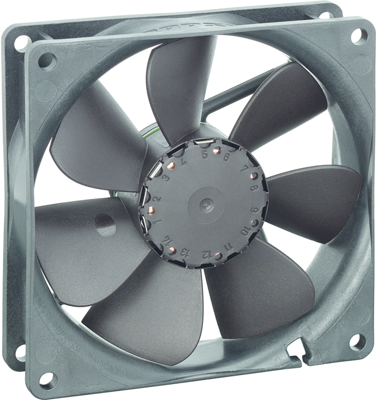

DC Axial fan, 3412 NME, EBM-PAPST
The 3412 NME is a compact, quiet and efficient this not only saves energy, but also means less self-heating of the motor. The bearing system in particular reacts positively to the low self-heating the reason why the fan can achieve up to 85% longer service life.
Features
- Connection via single strands AWG 24, TR 64, bared and tin-plated
- Electronic commutation completely integrated
- Protected against reverse polarity and blocking
- With protection class: IP54/IP68
Technical specifications
| Version | DC axial fan | |
| Width | 92 mm | |
| speed | 2300 1/min | |
| Height | 92 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 1.1 W | |
| Rated voltage | 12 V | |
| Sound pressure level | 28 db | |
| Depth | 25 mm | |
| Volume flow | 72 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
