3414 NGH | ebm-papst

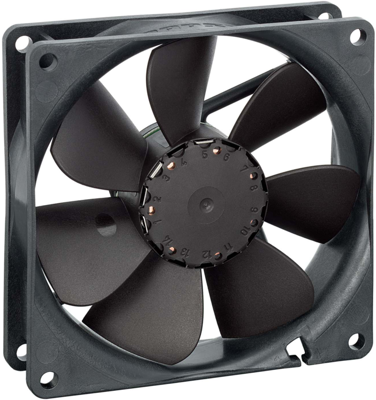

DC axial fan, 24 V, 92 x 92 x 25 mm, 94 m³/h, 36 dB, sintec slide bearing, ebm-papst 3414 NGH
Unit Price (€ / pc.)
54.7876 € *
Available: 80 pcs.
Leadtime: 8 Weeks **
Total Price:
54.79 € *
Price list
Quantity
Price per unit*
1 pcs.
54.7876 €
5 pcs.
51.5032 €
15 pcs.
49.5159 €
50 pcs.
47.3263 €
150 pcs.
45.3628 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, 3414 NGH, EBM-PAPST
The 3414 NGH is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Protected against blocking
- With protection class: IP54/IP68
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Breite | 92 mm | |
| Drehzahl | 3000 1/min | |
| Höhe | 92 mm | |
| Lagerart | Sintec Gleitlager | |
| Leistungsaufnahme | 3 W | |
| Nennspannung | 24 V | |
| Schalldruckpegel | 36 db | |
| Tiefe | 25 mm | |
| Volumenstrom | 94 m³/h |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
