405 F | ebm-papst

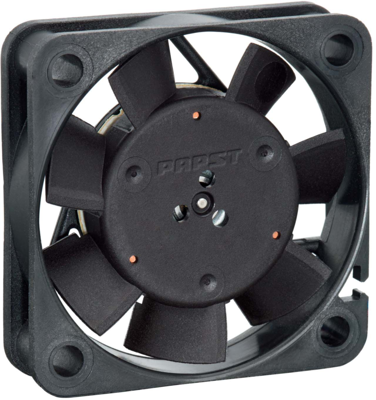

DC axial fan, 5 V, 40 x 40 x 10 mm, 8 m³/h, 22 dB, slide bearing, ebm-papst 405 F
Unit Price (€ / pc.)
28.6790 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
28.68 € *
Price list
Quantity
Price per unit*
1 pcs.
28.6790 €
10 pcs.
26.9654 €
25 pcs.
25.0733 €
50 pcs.
23.0741 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, 405 F, EBM-PAPST
The 405 F is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Cable comes with two flat plugs also it is suitable for housing with a grounding lug for M4 screws
- Protected against reverse polarity and blocking
- Direction of rotation left, viewed on the rotor
- Protection against moisture
Technical specifications
| Version | DC axial fan | |
| Width | 40 mm | |
| speed | 5400 1/min | |
| Height | 40 mm | |
| Type of bearing | slide bearing | |
| Power consumption | 0.7 W | |
| Rated voltage | 5 V | |
| Sound pressure level | 22 db | |
| Depth | 10 mm | |
| Volume flow | 8 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
