4112 NH3 | ebm-papst
DC axial fan, 12 V, 119 x 119 x 38 mm, 310 m³/h, 64 dB, ball bearing, ebm-papst 4112 NH3
Unit Price (€ / pc.)
64.1767 € *
Available: 0 pcs.
Leadtime: 1 Week **

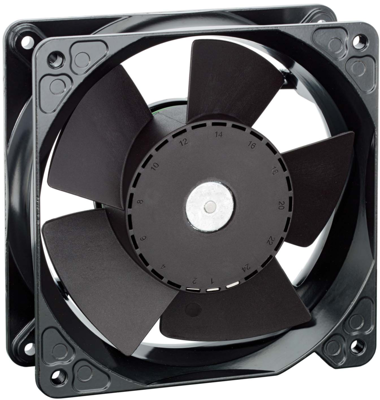

DC Axial fan, 4112 NH3, EBM-PAPST
The 4112 NH3 is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Protected against blocking
- With protection class: IP54/IP68
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Breite | 119 mm | |
| Drehzahl | 6000 1/min | |
| Höhe | 119 mm | |
| Lagerart | Kugellager | |
| Leistungsaufnahme | 21 W | |
| Nennspannung | 12 V | |
| Schalldruckpegel | 64 db | |
| Tiefe | 38 mm | |
| Volumenstrom | 310 m³/h |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
