412/2 | ebm-papst
DC axial fan, 12 V, 40 x 40 x 20 mm, 10 m³/h, 18 dB, slide bearing, ebm-papst 412/2
Unit Price (€ / pc.)
24.9781 € *
Available: 0 pcs.
Leadtime: On Request **

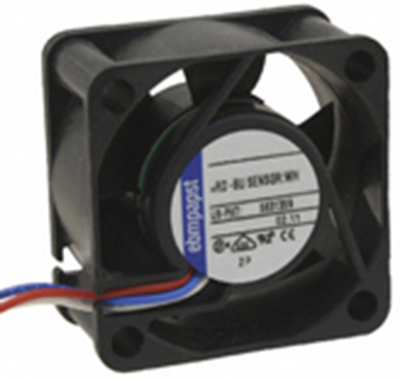

DC Axial fan, 412/2, EBM-PAPST
The 412/2 is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Speed proportional square wave signal for external speed monitoring of the fan motor
- 2 pulses per revolution
- Stranded wire connection
- With protection class: IP54
Technical specifications
Version | DC-Axiallüfter | |
Rated voltage | 12 V | |
Width | 40 mm | |
Height | 40 mm | |
Depth | 20 mm | |
Volume flow | 10 m³/h | |
Sound pressure level | 18 db | |
speed | 6000 1/min | |
Type of bearing | Gleitlager | |
Power consumption | 0.9 W |
Download
Logistics
Country of origin | HU |
Customs tariff number | 84145925 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
Substance description | Blei |
