412 J | ebm-papst

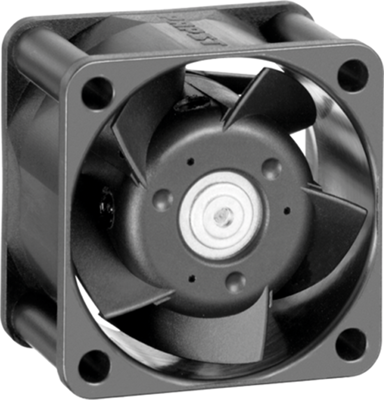

DC axial fan, 12 V, 40 x 40 x 25 mm, 19 m³/h, 39 dB, ball bearing, ebm-papst 412 J
Unit Price (€ / pc.)
43.6135 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
43.61 € *
Price list
Quantity
Price per unit*
1 pcs.
43.6135 €
5 pcs.
40.9955 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, 412 J, EBM-PAPST
The 412 J is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Connection via single strands AWG 26, TR 64, bared and tin-plated
- Electronic commutation completely integrated
- Protected against reverse polarity and blocking
- Low operating noise level at high back pressure
Technical specifications
| Version | DC axial fan | |
| Width | 40 mm | |
| speed | 10300 1/min | |
| Height | 40 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 2.4 W | |
| Rated voltage | 12 V | |
| Sound pressure level | 39 db | |
| Depth | 25 mm | |
| Volume flow | 19 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
