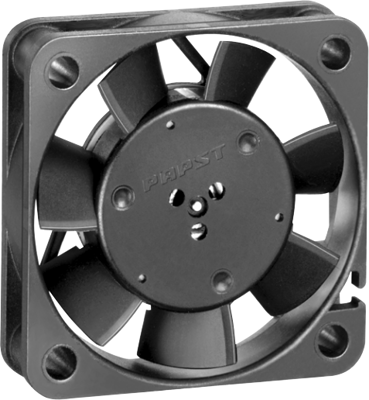

414 F/2 | ebm-papst
DC axial fan, 24 V, 40 x 40 x 10 mm, 7.98 m³/h, 22.1 dB, sintec slide bearing, ebm-papst 414 F/2
Unit Price (€ / pc.)
44.4584 € *
Available: 55 pcs.
Leadtime: 10 Weeks **
Total Price:
44.46 € *
Price list
Quantity
Price per unit*
1 pcs.
44.4584 €
5 pcs.
41.7928 €
15 pcs.
40.1863 €
50 pcs.
38.4132 €
150 pcs.
36.8186 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, 414 F/2, EBM-PAPST
The 414 F/2 is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Housing GRP1
- Direction of rotation is clockwise while viewed towards the rotor
- Connection via single strands AWG 28, TR 64
- Moisture protection
Technical specifications
| Version | DC axial fan | |
| Width | 40 mm | |
| speed | 5400 1/min | |
| Height | 40 mm | |
| Type of bearing | sintec slide bearing | |
| Power consumption | 0.8 W | |
| Rated voltage | 24 V | |
| Sound pressure level | 22.1 db | |
| Depth | 10 mm | |
| Volume flow | 7.98 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
