414 JH | ebm-papst
DC axial fan, 24 V, 40 x 40 x 25 mm, 22 m³/h, 43 dB, ball bearing, ebm-papst 414 JH
Unit Price (€ / pc.)
58.2267 € *
Available: 11 pcs.
Leadtime: 8 Weeks **
Total Price:
58.23 € *
Price list
Quantity
Price per unit*
1 pcs.
58.2267 €
5 pcs.
54.7400 €
15 pcs.
52.6456 €
50 pcs.
50.3132 €
150 pcs.
48.2188 €
*incl. VAT plus shipping costs
**Subject to prior sale

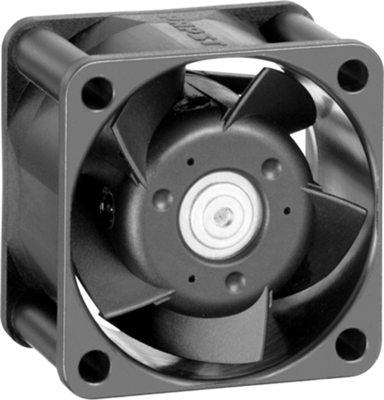

DC Axial fan, 414 JH, EBM-PAPST
The 414 JH is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Low operating noise level at high counterpressure
- Connection via single strands AWG 26, TR 64, bared and tin-plated
- Protected against reverse polarity and blocking
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Version | DC axial fan | |
| Width | 40 mm | |
| speed | 11700 1/min | |
| Height | 40 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 3 W | |
| Rated voltage | 24 V | |
| Sound pressure level | 43 db | |
| Depth | 25 mm | |
| Volume flow | 22 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
