4154 N/2 H8P | ebm-papst

DC axial fan, 24 V, 119 x 119 x 38 mm, 570.8 m³/h, 49 dB, ball bearing, ebm-papst 4154 N/2 H8P

Order No.: 90B158
EAN: 4099889481761
MPN:
4154 N/2 H8P
9694314031
Series: 4100 N

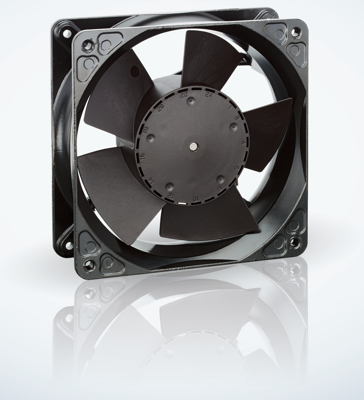

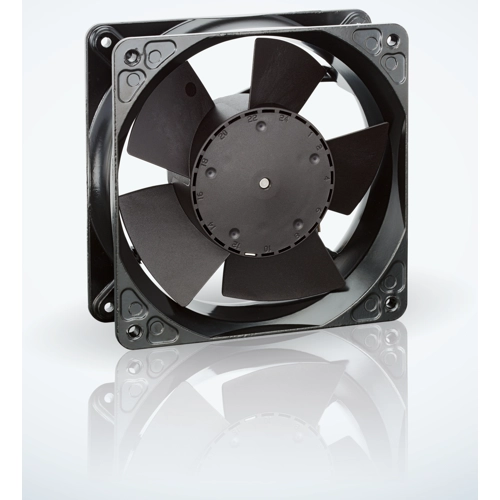

4154 N/2 H8P ebm-papst Axial Fans
Image may differ
Unit Price (€ / pc.)
127.330 € *
Available: 49 pcs.
Leadtime: 8 Weeks **
Total Price:
127.33 € *
Price list
Quantity
Price per unit*
1 pcs.
127.330 €
2 pcs.
123.760 €
5 pcs.
117.691 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC Axial fan, 4154 N/2 H8P, EBM-PAPST

The 4154 N/2 H8P is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.

Features

  • Via single wires AWG 18, 20 or AWG 22, TR 64, speed signal and control input AWG 22
  • Direction of rotation is clockwise while viewed towards the rotor
  • Highly efficient and smoothly operating 3 phase fan drive Housing with grounding lug for screw M4 x 8
  • Moisture protection
Technical specifications
Ausführung DC-Axiallüfter
Breite 119 mm
Drehzahl 3400 1/min
Höhe 119 mm
Lagerart Kugellager
Leistungsaufnahme 120 W
Nennspannung 24 V
Schalldruckpegel 49 db
Tiefe 38 mm
Volumenstrom 570.8 m³/h
Logistics
Ursprungsland HU
Zolltarifnummer 84145925
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
