4182 NX | ebm-papst

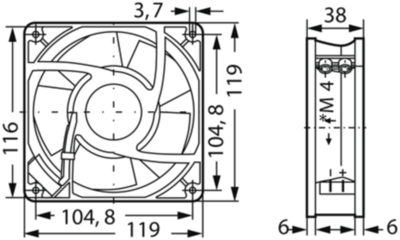

DC axial fan, 12 V, 119 x 119 x 38 mm, 180 m³/h, 49 dB, ball bearing, ebm-papst 4182 NX
Unit Price (€ / pc.)
70.7336 € *
Available: 6 pcs.
Next delivery: 5 pcs. on 2025-03-28
Leadtime: 8 Weeks **
DC Axial fan, 4182 NX, EBM-PAPST
The 4182 NX axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Very pressure stiff characteristic for high volume flow at high back pressure
- Low operating noise at high back pressure
- Electronic commutation completely integrated
- Protected against polarity reversal and blocking
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Breite | 119 mm | |
| Drehzahl | 3200 1/min | |
| Höhe | 119 mm | |
| Lagerart | Kugellager | |
| Leistungsaufnahme | 4 W | |
| Nennspannung | 12 V | |
| Schalldruckpegel | 49 db | |
| Tiefe | 38 mm | |
| Volumenstrom | 180 m³/h |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
