4184 NX | ebm-papst
DC axial fan, 24 V, 119 x 119 x 38 mm, 180 m³/h, 49 dB, ball bearing, ebm-papst 4184 NX
Unit Price (€ / pc.)
95.9021 € *
Available: 147 pcs.
Next delivery: 55 pcs. on 2025-11-28
Leadtime: 2 Weeks **
Total Price:
95.90 € *
Price list
Quantity
Price per unit*
1 pcs.
95.9021 €
5 pcs.
90.1425 €
15 pcs.
86.6915 €
50 pcs.
82.8597 €
150 pcs.
79.4087 €
*incl. VAT plus shipping costs
**Subject to prior sale

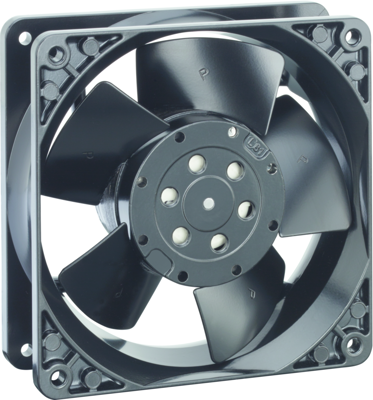

DC Axial fan, 4184 NX, EBM-PAPST
The 4184 NX axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Very pressure stiff characteristic for high volume flow at high back pressure
- Low operating noise at high back pressure
- Electronic commutation completely integrated
- Protected against polarity reversal and blocking
Technical specifications
| Version | DC axial fan | |
| Width | 119 mm | |
| speed | 3200 1/min | |
| Height | 119 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 4.5 W | |
| Rated voltage | 24 V | |
| Sound pressure level | 49 db | |
| Depth | 38 mm | |
| Volume flow | 180 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
