4184 NXHH | ebm-papst

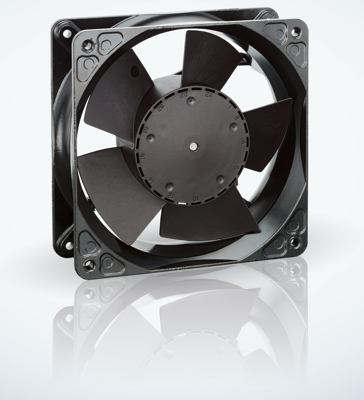

DC axial fan, 24 V, 119 x 119 x 38 mm, 249.9 m³/h, 60 dB, ball bearing, ebm-papst 4184 NXHH

Order No.: 90B192
EAN: 4099889483116
MPN:
4184 NXHH
9294310217
Series: 4100 N
4184 NXHH ebm-papst Axial Fans
Image may differ
Unit Price (€ / pc.)
115.3348 € *
Available: 12 pcs.
Leadtime: On Request **
Total Price:
115.33 € *
Price list
Quantity
Price per unit*
1 pcs.
115.3348 €
5 pcs.
108.4090 €
15 pcs.
104.2678 €
50 pcs.
99.6506 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC Axial fan, 4184 NXHH, EBM-PAPST

The 4184 NXHH axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.

Features

  • Direction of rotation is clockwise while viewed towards the rotor
  • Airflow direction air outlet over struts
  • Max. torque when mounted across both mounting wire outlet corner is 170 Ncm
  • Material housing: metal
Technical specifications
Ausführung DC-Axiallüfter
Breite 119 mm
Drehzahl 4900 1/min
Höhe 119 mm
Lagerart Kugellager
Leistungsaufnahme 12 W
Nennspannung 24 V
Schalldruckpegel 60 db
Tiefe 38 mm
Volumenstrom 249.9 m³/h
Logistics
Ursprungsland HU
Zolltarifnummer 84145925
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
