422JN | ebm-papst
DC axial fan, 12 V, 40 x 40 x 28 mm, 31 m³/h, 48 dB, ball bearing, ebm-papst 422JN
Unit Price (€ / pc.)
49.4445 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
49.44 € *
Price list
Quantity
Price per unit*
1 pcs.
49.4445 €
5 pcs.
46.4814 €
*incl. VAT plus shipping costs
**Subject to prior sale

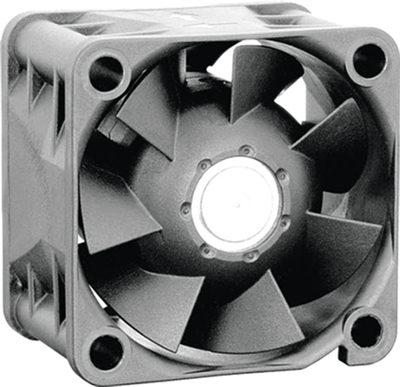

DC Axial fan, 422JN, EBM-PAPST
The 422JN axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Very pressure stiff characteristic for high volume flow at high back pressure
- Connection cable via single strands AWG 28, UL 1061
- Moisture protection
- Moisture protection

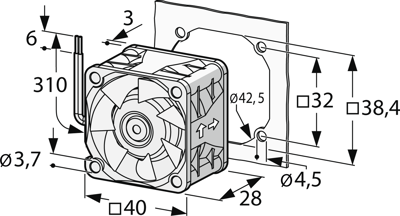

Technical specifications
| Version | DC axial fan | |
| Width | 40 mm | |
| speed | 14250 1/min | |
| Height | 40 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 4 W | |
| Rated voltage | 12 V | |
| Sound pressure level | 48 db | |
| Depth | 28 mm | |
| Volume flow | 31 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
