424JH | ebm-papst
DC axial fan, 24 V, 40 x 40 x 28 mm, 38 m³/h, 54 dB, ball bearing, ebm-papst 424JH
Unit Price (€ / pc.)
29.0360 € *
Available: 9 pcs.
Leadtime: 8 Weeks **
Total Price:
29.04 € *
Price list
Quantity
Price per unit*
1 pcs.
29.0360 €
10 pcs.
26.7036 €
*incl. VAT plus shipping costs
**Subject to prior sale

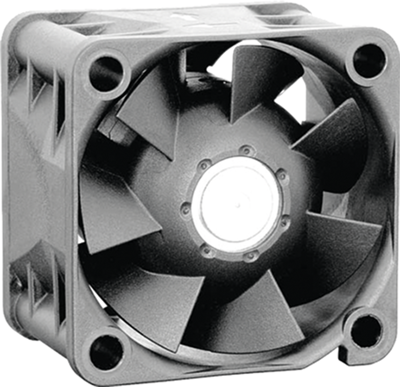

DC Axial fan, 424JH, EBM-PAPST
The 424JH is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation left, viewed on rotor
- Connection cable via single strands AWG 28, UL 1061
- Moisture protection
- Conveying direction blowing over bars
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Breite | 40 mm | |
| Drehzahl | 14000 1/min | |
| Höhe | 40 mm | |
| Lagerart | Kugellager | |
| Leistungsaufnahme | 6 W | |
| Nennspannung | 24 V | |
| Schalldruckpegel | 54 db | |
| Tiefe | 28 mm | |
| Volumenstrom | 38 m³/h |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
