4312 NH3 | ebm-papst
DC axial fan, 12 V, 119 x 119 x 32 mm, 285 m³/h, 55 dB, ball bearing, ebm-papst 4312 NH3
Unit Price (€ / pc.)
72.2330 € *
Available: 11 pcs.
Leadtime: 8 Weeks **
Total Price:
72.23 € *
Price list
Quantity
Price per unit*
1 pcs.
72.2330 €
2 pcs.
71.0430 €
5 pcs.
66.8304 €
*incl. VAT plus shipping costs
**Subject to prior sale

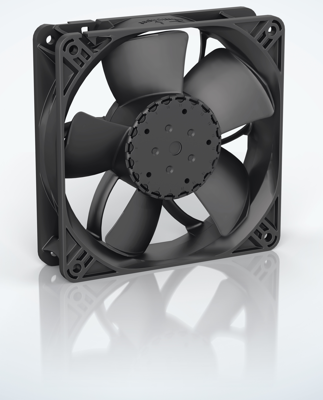

DC Axial fan, 4312 NH3, EBM-PAPST
The 4312 NH3 axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Housing GRP1
- Direction of rotation is clockwise while viewed towards the rotor
- Connection via single strands AWG 24, TR 64
- Conveying direction blowing over bars
Technical specifications
| Version | DC axial fan | |
| Width | 119 mm | |
| speed | 4050 1/min | |
| Height | 119 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 12 W | |
| Rated voltage | 12 V | |
| Sound pressure level | 55 db | |
| Depth | 32 mm | |
| Volume flow | 285 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
