4314 N/17 NT | ebm-papst

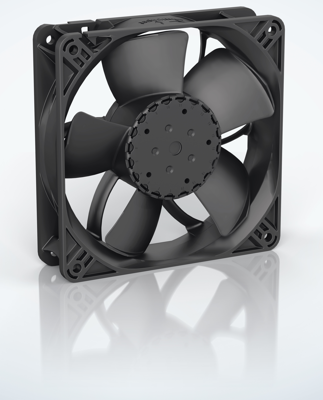

DC axial fan, 24 V, 119 x 119 x 32 mm, 187 m³/h, 45 dB, ball bearing, ebm-papst 4314 N/17 NT
Unit Price (€ / pc.)
97.6276 € *
Available: 11 pcs.
Leadtime: 8 Weeks **
Total Price:
97.63 € *
Price list
Quantity
Price per unit*
1 pcs.
97.6276 €
5 pcs.
91.7728 €
15 pcs.
88.2504 €
50 pcs.
84.3472 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, 4314 N/17 NT, EBM-PAPST
The 4314 N/17 NT axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Reversed polarity protection Rectifying diode
- Locked rotor current at UN Iblock approx. 720 mA
- Max. residual current at UN IF < 100 uA
Technical specifications
| Version | DC axial fan | |
| Width | 119 mm | |
| speed | 2700 1/min | |
| Height | 119 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 5 W | |
| Rated voltage | 24 V | |
| Sound pressure level | 45 db | |
| Depth | 32 mm | |
| Volume flow | 187 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
