4314 N/2 HP | ebm-papst
DC axial fan, 24 V, 119 x 119 x 32 mm, 220 m³/h, 47 dB, ball bearing, ebm-papst 4314 N/2 HP
Unit Price (€ / pc.)
80.8724 € *
Available: 93 pcs.
Leadtime: 2 Weeks **
Total Price:
80.87 € *
Price list
Quantity
Price per unit*
1 pcs.
80.8724 €
5 pcs.
76.0172 €
15 pcs.
73.1136 €
50 pcs.
69.8768 €
150 pcs.
66.9732 €
*incl. VAT plus shipping costs
**Subject to prior sale

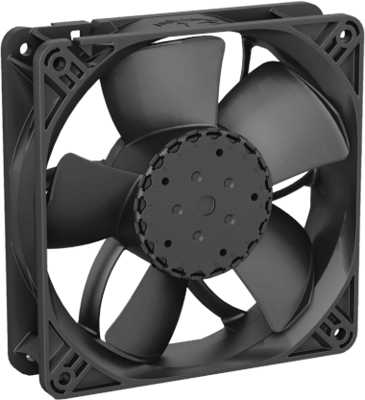

DC Axial fan, 4314 N/2 HP, EBM-PAPST
The 4314 N/2 HP axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Rotor protrusion max. 0,4 mm
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Version | DC axial fan | |
| Width | 119 mm | |
| speed | 3150 1/min | |
| Height | 119 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 6.5 W | |
| Rated voltage | 24 V | |
| Sound pressure level | 47 db | |
| Depth | 32 mm | |
| Volume flow | 220 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
