4412 F/2 GML | ebm-papst
DC axial fan, 12 V, 119 x 119 x 25.4 mm, 114 m³/h, 30 dB, slide bearing, ebm-papst 4412 F/2 GML
Unit Price (€ / pc.)
32.4275 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

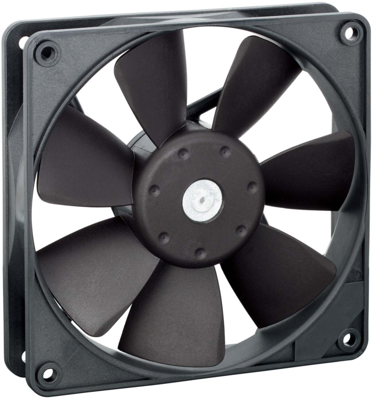

DC Axial fan, 4412 F/2 GML, EBM-PAPST
The 4412 F/2 GML axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Max. torque when mounted across both mounting wire outlet corner is 40 Ncm
- Insulation diameter 1,55 mm
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Breite | 119 mm | |
| Drehzahl | 1950 1/min | |
| Höhe | 119 mm | |
| Lagerart | Gleitlager | |
| Leistungsaufnahme | 2 W | |
| Nennspannung | 12 V | |
| Schalldruckpegel | 30 db | |
| Tiefe | 25.4 mm | |
| Volumenstrom | 114 m³/h |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
