4412 F/2 | ebm-papst

DC axial fan, 12 V, 119 x 119 x 25.4 mm, 168 m³/h, 43 dB, ball bearing, ebm-papst 4412 F/2

Order No.: 90B1812
EAN: 4099889482133
MPN:
4412 F/2
9293505452
Series: 4400 F
4412 F/2 ebm-papst Axial Fans

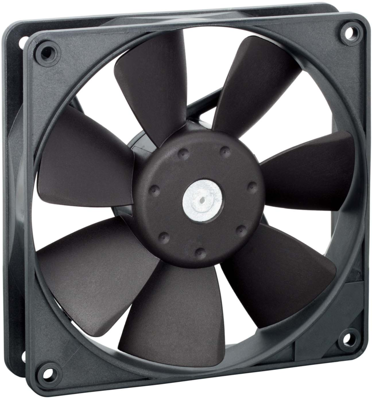

Image may differ
Unit Price (€ / pc.)
52.5266 € *
Available: 17 pcs.
Leadtime: On Request **
Total Price:
52.53 € *
Price list
Quantity
Price per unit*
1 pcs.
52.5266 €
2 pcs.
50.9558 €
5 pcs.
48.4092 €
10 pcs.
44.0538 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC Axial fan, 4412 F/2, EBM-PAPST

The 4412 F/2 axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.

Features

  • Direction of rotation is clockwise while viewed towards the rotor
  • Airflow direction air outlet over struts
  • Max. torque when mounted across both mounting wire outlet corner is 40 Ncm
  • Insulation diameter 1,55 mm
Technical specifications
Ausführung DC-Axiallüfter
Breite 119 mm
Drehzahl 2900 1/min
Höhe 119 mm
Lagerart Kugellager
Leistungsaufnahme 5.3 W
Nennspannung 12 V
Schalldruckpegel 43 db
Tiefe 25.4 mm
Volumenstrom 168 m³/h
Logistics
Ursprungsland HU
Zolltarifnummer 84145925
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
