4412 H | ebm-papst
DC axial fan, 12 V, 119 x 119 x 38 mm, 240 m³/h, 50 dB, ball bearing, ebm-papst 4412 H
Unit Price (€ / pc.)
37.2113 € *
Available: 119 pcs.
Leadtime: 2 Weeks **
Total Price:
37.21 € *
Price list
Quantity
Price per unit*
1 pcs.
37.2113 €
2 pcs.
35.2835 €
5 pcs.
33.8793 €
*incl. VAT plus shipping costs
**Subject to prior sale

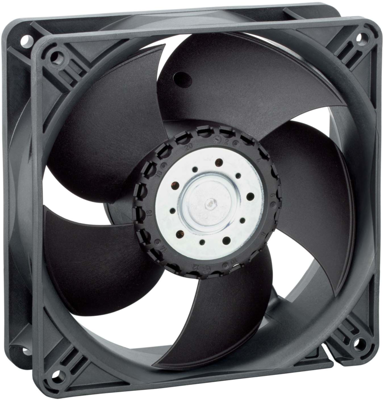

DC Axial fan, 4412 H, EBM-PAPST
The 4412 H is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Max. torque when mounted across both mounting wire outlet corner is 80 Ncm
- Insulation diameter 1,10 mm
Technical specifications
| Version | DC axial fan | |
| Width | 119 mm | |
| speed | 4300 1/min | |
| Height | 119 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 8 W | |
| Rated voltage | 12 V | |
| Sound pressure level | 50 db | |
| Depth | 38 mm | |
| Volume flow | 240 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
