4414 LL | ebm-papst
DC axial fan, 24 V, 119 x 119 x 38 mm, 124 m³/h, 33 dB, ball bearing, ebm-papst 4414 LL
Unit Price (€ / pc.)
36.0451 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

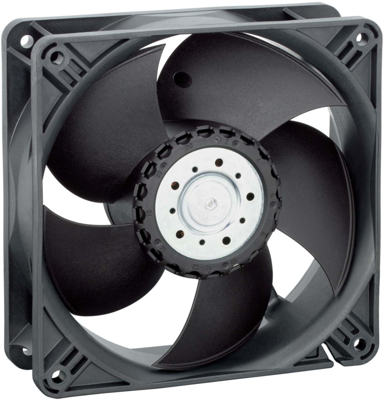

DC Axial fan, 4414 LL, EBM-PAPST
The 4414 LL is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Reversed polarity protection Rectifying diode
- Locked rotor protection Auto restart
- Optimal operating point 92,0 m3/h @ 13 Pa
Technical specifications
| Version | DC axial fan | |
| Width | 119 mm | |
| speed | 2250 1/min | |
| Height | 119 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 1.6 W | |
| Rated voltage | 24 V | |
| Sound pressure level | 33 db | |
| Depth | 38 mm | |
| Volume flow | 124 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
