4580 N | ebm-papst

AC axial fan, 230 V, 119 x 119 x 38 mm, 123 m³/h, 41 dB, sintec slide bearing, ebm-papst 4580 N

Order No.: 90B1202
EAN: 4099889480894
MPN:
4580 N
9274014113
Series: 4000 N
ebm-papst

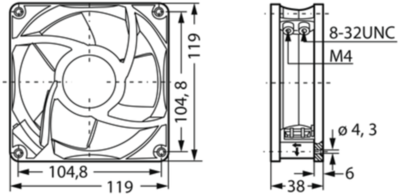

4580 N ebm-papst Axial Fans Image 1

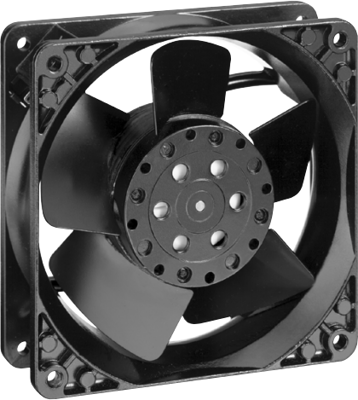

4580 N ebm-papst Axial Fans Image 2
Image may differ
Unit Price (€ / pc.)
69.3056 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
69.31 € *
Price list
Quantity
Price per unit*
1 pcs.
69.3056 €
5 pcs.
65.1406 €
*incl. VAT plus shipping costs
**Subject to prior sale

AC Axial fan, 4580 N, EBM-PAPST

The 4580 N axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.

Features

  • Cable connection with 2 flat plugs 3.0 x 0.5 mm
  • Protected against overload by impedance protection
  • Direction of rotation right, viewed on the rotor
  • With protection class: IP54/IP68
Technical specifications
Version AC axial fan
Width 119 mm
speed 2350 1/min
Height 119 mm
Type of bearing sintec slide bearing
Power consumption 18 W
Rated voltage 230 V
Sound pressure level 41 db
Depth 38 mm
Volume flow 123 m³/h
Logistics
Country of origin CN
Customs tariff number 84145925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
