4606 N | ebm-papst
AC axial fan, 115 V, 119 x 119 x 38 mm, 180 m³/h, 51 dB, ball bearing, ebm-papst 4606 N
Unit Price (€ / pc.)
76.4575 € *
Available: 45 pcs.
Leadtime: 3 Weeks **
Total Price:
76.46 € *
Price list
Quantity
Price per unit*
1 pcs.
76.4575 €
5 pcs.
71.8641 €
15 pcs.
69.1152 €
50 pcs.
66.0569 €
150 pcs.
63.3080 €
*incl. VAT plus shipping costs
**Subject to prior sale

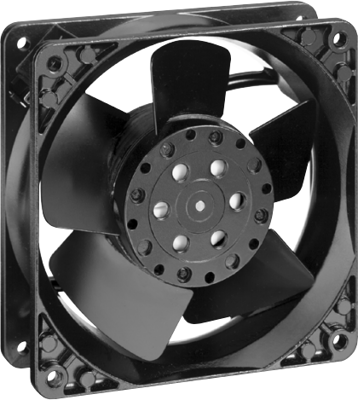

AC Axial fan, 4606 N, EBM-PAPST
The 4606 N axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Cable connection with 2 flat plugs 3.0 x 0.5 mm
- Direction of rotation right, viewed on the rotor
- Protected against overload by impedance protection
- With protection class: IP54/IP68

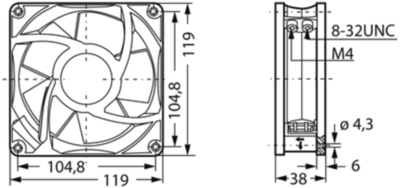

Technical specifications
| Version | AC axial fan | |
| Width | 119 mm | |
| speed | 3100 1/min | |
| Height | 119 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 18 W | |
| Rated voltage | 115 V | |
| Sound pressure level | 51 db | |
| Depth | 38 mm | |
| Volume flow | 180 m³/h |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
