4606 Z | ebm-papst
AC axial fan, 115 V, 119 x 119 x 38 mm, 180 m³/h, 45 dB, ball bearing, ebm-papst 4606 Z
Unit Price (€ / pc.)
67.7705 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
67.77 € *
Price list
Quantity
Price per unit*
1 pcs.
67.7705 €
5 pcs.
63.7126 €
15 pcs.
61.2731 €
50 pcs.
58.5599 €
150 pcs.
56.1204 €
*incl. VAT plus shipping costs
**Subject to prior sale

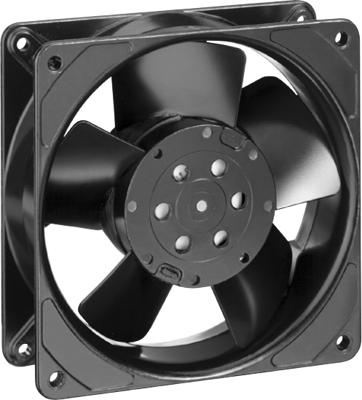

AC Axial fan, 4606 Z, EBM-PAPST
The 4606 Z axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Cable connection 2 flat plugs 2.8 x 0.5 mm
- Direction of rotation right, viewed on the rotor
- Protected against overload by impedance protection
- With protection class: IP54/IP68

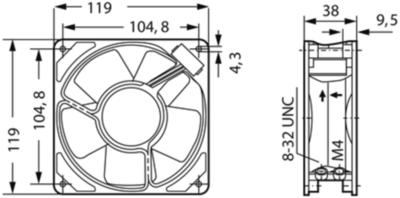

Technical specifications
| Version | AC axial fan | |
| Width | 119 mm | |
| speed | 3100 1/min | |
| Height | 119 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 18 W | |
| Rated voltage | 115 V | |
| Sound pressure level | 45 db | |
| Depth | 38 mm | |
| Volume flow | 180 m³/h |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
