4624 N | ebm-papst

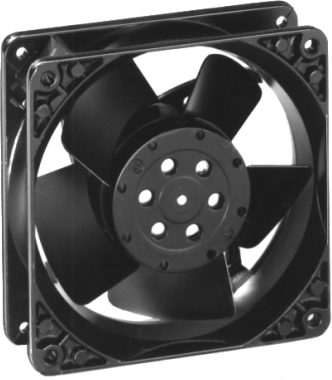

AC axial fan, 24 V, 119 x 119 x 38 mm, 135 m³/h, 46 dB, slide bearing, ebm-papst 4624 N
Unit Price (€ / pc.)
40.9122 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
AC Axial fan, 4624 N, EBM-PAPST
The 4624 N axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Esigned for maintenance-free long_x0002_tern operation
- Protected against overload by impedance protection
- Any mounting position
- With protection class: IP54/IP68

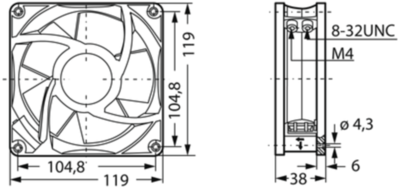

Technical specifications
| Version | AC axial fan | |
| Width | 119 mm | |
| speed | 3100 1/min | |
| Height | 119 mm | |
| Type of bearing | slide bearing | |
| Power consumption | 18 W | |
| Rated voltage | 24 V | |
| Sound pressure level | 46 db | |
| Depth | 38 mm | |
| Volume flow | 135 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
