4656 TA | ebm-papst
AC axial fan, 230 V, 113 x 113 x 37 mm, 138 m³/h, 42 dB, ball bearing, ebm-papst 4656 TA
Discontinued
Unit Price (€ / pc.)
73.3397 € *
Available: 11 pcs.
Leadtime: On Request **

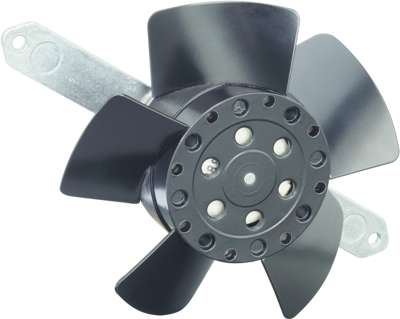

AC Axial fan, 4656 TA, EBM-PAPST
The 4656 TA axial fan is fan that discharge air along the axis of the fan, i.e. the curved fan blades force the air to move parallel to the shaft around which the fan blades rotate. This fan can produce variable airflow and have higher throughput than centrifugal fan.
Features
- Connection cable 2 single strands AWG 18
- Protected against overload by impedance protection
- Direction of rotation right, viewed on the rotor
- Direction of flow suction via mounting bracket
Technical specifications
| Version | AC axial fan | |
| Width | 113 mm | |
| speed | 2550 1/min | |
| Height | 113 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 19 W | |
| Rated voltage | 230 V | |
| Sound pressure level | 42 db | |
| Depth | 37 mm | |
| Volume flow | 138 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
