4656 X | ebm-papst

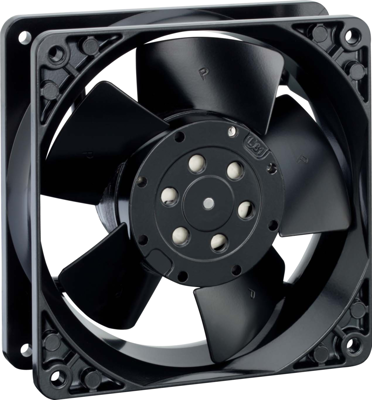

AC axial fan, 230 V, 119 x 119 x 38 mm, 146 m³/h, 44 dB, ball bearing, ebm-papst 4656 X

Order No.: 90B1843
EAN: 4099889482355
MPN:
4656 X
9274014313
Series: 4656 X
ebm-papst
4656 X ebm-papst Axial Fans
Image may differ
Unit Price (€ / pc.)
47.2311 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
47.23 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
47.2311 €

AC Axial fan, 4656 X, EBM-PAPST

The 4656 X is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.

Features

  • Direction of rotation right, viewed on the rotor
  • Conveying direction sucking over bars
  • Max. torque when mounted across both mounting wire outlet corner is 160 Ncm
  • Blocking protection impedance
Technical specifications
Version AC axial fan
Width 119 mm
speed 2600 1/min
Height 119 mm
Type of bearing ball bearing
Power consumption 19 W
Rated voltage 230 V
Sound pressure level 44 db
Depth 38 mm
Volume flow 146 m³/h
Logistics
Country of origin CN
Customs tariff number 84145925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
