4656 ZW | ebm-papst
AC axial fan, 230 V, 119 x 119 x 38 mm, 180 m³/h, 37 dB, ball bearing, ebm-papst 4656 ZW
Unit Price (€ / pc.)
80.1346 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
80.13 € *
Price list
Quantity
Price per unit*
1 pcs.
80.1346 €
5 pcs.
75.3270 €
*incl. VAT plus shipping costs
**Subject to prior sale

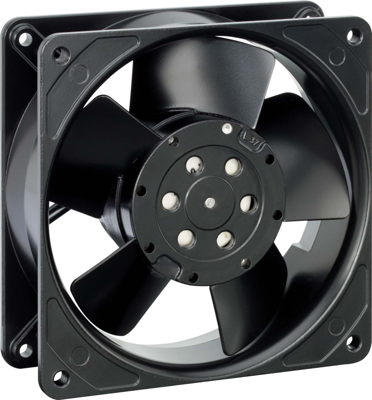

AC Axial fan, 4656 ZW, EBM-PAPST
The 4656 ZW is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Max. torque when mounted across both mounting wire outlet corner is 120 Ncm
- Insulation diameter 2,06 mm
Technical specifications
| Ausführung | AC-Axiallüfter | |
| Breite | 119 mm | |
| Drehzahl | 2650 1/min | |
| Höhe | 119 mm | |
| Lagerart | Kugellager | |
| Leistungsaufnahme | 19 W | |
| Nennspannung | 230 V | |
| Schalldruckpegel | 37 db | |
| Tiefe | 38 mm | |
| Volumenstrom | 180 m³/h |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
