4850 N | ebm-papst

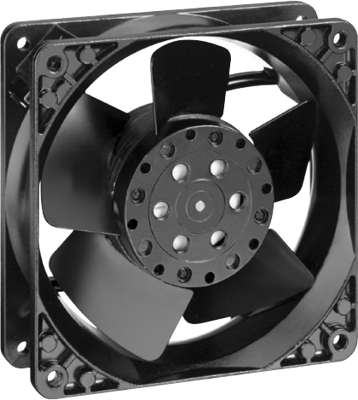

AC axial fan, 230 V, 119 x 119 x 38 mm, 100 m³/h, 32 dB, slide bearing, ebm-papst 4850 N
Unit Price (€ / pc.)
34.1054 € *
Available: 64 pcs.
Leadtime: 3 Weeks **
Total Price:
34.11 € *
Price list
Quantity
Price per unit*
1 pcs.
34.1054 €
10 pcs.
31.3803 €
*incl. VAT plus shipping costs
**Subject to prior sale
AC Axial fan, 4850 N, EBM-PAPST
The 4850 N is a brushless AC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Cable connection with 2 flat plugs 3.0 x 0.5 mm
- Protected against overload by impedance protection
- Direction of rotation right, viewed on the rotor
- With protection class: IP54/IP68

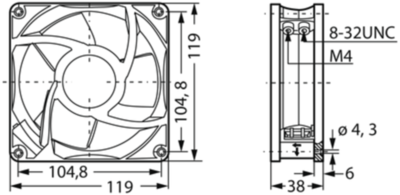

Technical specifications
| Version | AC axial fan | |
| Width | 119 mm | |
| speed | 1800 1/min | |
| Height | 119 mm | |
| Type of bearing | slide bearing | |
| Power consumption | 10 W | |
| Rated voltage | 230 V | |
| Sound pressure level | 32 db | |
| Depth | 38 mm | |
| Volume flow | 100 m³/h |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
