512 F/2 | ebm-papst
DC axial fan, 12 V, 50 x 50 x 15 mm, 20 m³/h, 30 dB, sintec slide bearing, ebm-papst 512 F/2
Unit Price (€ / pc.)
49.8491 € *
Available: 21 pcs.
Leadtime: 8 Weeks **
Total Price:
49.85 € *
Price list
Quantity
Price per unit*
1 pcs.
49.8491 €
5 pcs.
46.8622 €
15 pcs.
45.0772 €
50 pcs.
43.0780 €
150 pcs.
41.2811 €
*incl. VAT plus shipping costs
**Subject to prior sale

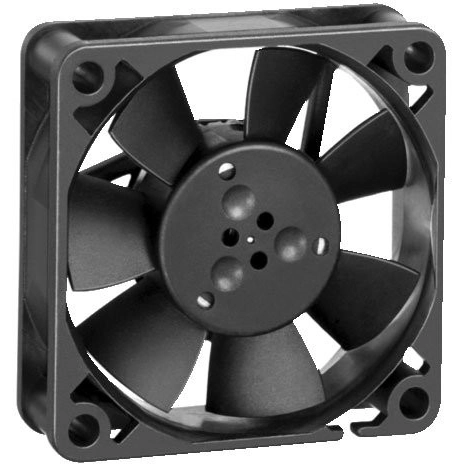

DC Axial fan, 512 F/2, EBM-PAPST
The 512 F/2 is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Speed proportional square wave signal for external speed monitoring of the fan motor
- 2 pulses per revolution
- Stranded wire connection
- Very wide operating voltage range
Technical specifications
| Version | DC axial fan | |
| Width | 50 mm | |
| speed | 5000 1/min | |
| Height | 50 mm | |
| Type of bearing | sintec slide bearing | |
| Power consumption | 1 W | |
| Rated voltage | 12 V | |
| Sound pressure level | 30 db | |
| Depth | 15 mm | |
| Volume flow | 20 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
