5212 NN | ebm-papst

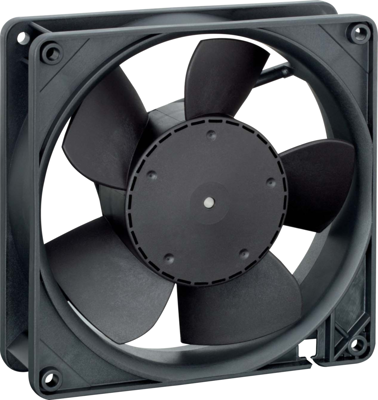

DC axial fan, 12 V, 127 x 127 x 38 mm, 216 m³/h, 46 dB, ball bearing, ebm-papst 5212 NN
Unit Price (€ / pc.)
70.0315 € *
Available: 10 pcs.
Leadtime: 2 Weeks **
Total Price:
70.03 € *
Price list
Quantity
Price per unit*
1 pcs.
70.0315 €
2 pcs.
67.9252 €
5 pcs.
64.4980 €
10 pcs.
58.6670 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, 5212 NN, EBM-PAPST
The 5212 NN is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.
Features
- Cable connection is with single strands AWG 22 and is stripped and tinned
- Protected against blocking
- Protected against reverse polarity
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Version | DC axial fan | |
| Width | 127 mm | |
| speed | 3150 1/min | |
| Height | 127 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 6 W | |
| Rated voltage | 12 V | |
| Sound pressure level | 46 db | |
| Depth | 38 mm | |
| Volume flow | 216 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
