5218 N/2 HH | ebm-papst

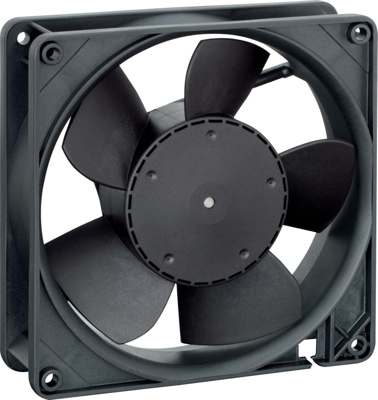

DC axial fan, 48 V, 127 x 127 x 38 mm, 340 m³/h, 58 dB, ball bearing, ebm-papst 5218 N/2 HH
Unit Price (€ / pc.)
56.3703 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
DC Axial fan, 5218 N/2 HH, EBM-PAPST
The 5218 N/2 HH is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Max. torque when mounted across both mounting wire outlet corner is 110 Ncm
- Insulation diameter 1,70 mm
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Breite | 127 mm | |
| Drehzahl | 4900 1/min | |
| Höhe | 127 mm | |
| Lagerart | Kugellager | |
| Leistungsaufnahme | 18 W | |
| Nennspannung | 48 V | |
| Schalldruckpegel | 58 db | |
| Tiefe | 38 mm | |
| Volumenstrom | 340 m³/h |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
