5312/2TDHP | ebm-papst
DC axial fan, 12 V, 140 x 140 x 51 mm, 410 m³/h, 70 dB, ball bearing, ebm-papst 5312/2TDHP
Unit Price (€ / pc.)
262.4664 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
262.47 € *
Price list
Quantity
Price per unit*
1 pcs.
262.4664 €
3 pcs.
254.6005 €
*incl. VAT plus shipping costs
**Subject to prior sale

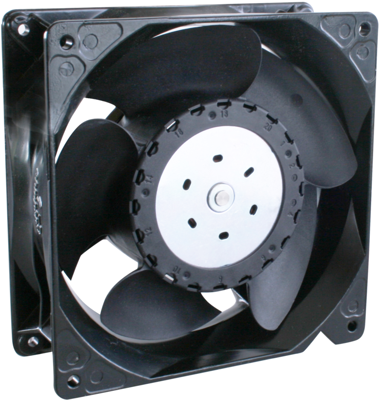

DC Axial fan, 5312/2TDHP, EBM-PAPST
The 5312/2TDHP is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.
Features
- Very pressure stiff characteristic for high volume flow at high back pressure
- Housing made of aluminum, fan wheel made of glass fiber reinforced PA
- Housing with grounding lug for M4 x 8 screw (Torx)
- Protected against reverse polarity and blocking
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Nennspannung | 12 V | |
| Breite | 140 mm | |
| Höhe | 140 mm | |
| Tiefe | 51 mm | |
| Volumenstrom | 410 m³/h | |
| Schalldruckpegel | 70 db | |
| Drehzahl | 6000 1/min | |
| Lagerart | Kugellager | |
| Leistungsaufnahme | 41 W |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 6/8/11 |
| SVHC frei | Yes |
