5656 S | ebm-papst

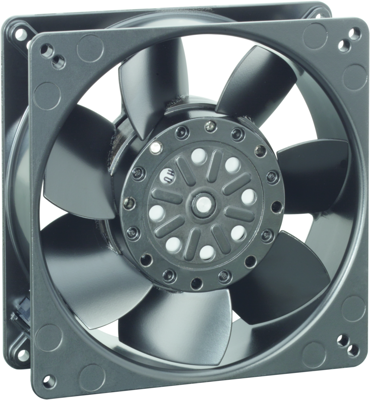

AC axial fan, 230 V, 135 x 135 x 38 mm, 235 m³/h, 46 dB, ball bearing, ebm-papst 5656 S
Unit Price (€ / pc.)
112.3598 € *
Available: 40 pcs.
Leadtime: 2 Weeks **
Total Price:
112.36 € *
Price list
Quantity
Price per unit*
1 pcs.
112.3598 €
5 pcs.
105.6244 €
15 pcs.
101.5784 €
50 pcs.
97.0921 €
*incl. VAT plus shipping costs
**Subject to prior sale
AC Axial fan, 5656 S, EBM-PAPST
The 5656 S AC axial fan is a type of fan that blow air along the axis of the fan-that is, the fancurved blades force air to move in parallel with the shaft on which the blades rotate. This fan can produce variable airflow and create higher flow rates than centrifugal fan.
Features
- Cable connection with 2 flat plugs 2.8 x 0.5 mm
- Protected against overload by thermal switch
- Direction of rotation left, viewed on the rotor
- Material housing: metal
Technical specifications
| Version | AC axial fan | |
| Width | 135 mm | |
| speed | 2700 1/min | |
| Height | 135 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 30 W | |
| Rated voltage | 230 V | |
| Sound pressure level | 46 db | |
| Depth | 38 mm | |
| Volume flow | 235 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
