5908 | ebm-papst
AC axial fan, 115 V, 127 x 127 x 38 mm, 206 m³/h, 47 dB, ball bearing, ebm-papst 5908
Unit Price (€ / pc.)
90.5352 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
90.54 € *
Price list
Quantity
Price per unit*
1 pcs.
90.5352 €
5 pcs.
85.1088 €
*incl. VAT plus shipping costs
**Subject to prior sale

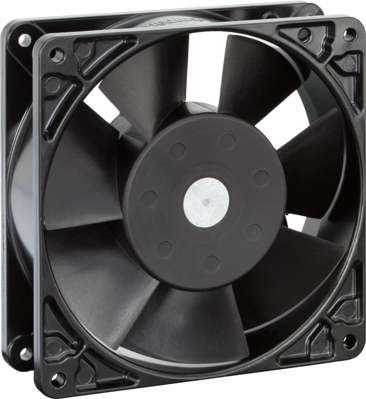

AC Axial fan, 5908, EBM-PAPST
The axial fan 5908 is suitable for high air flow rates at medium pressure build-up. The air is moved through the fan blades parallel to the rotational axis. Compact, quiet and highly efficient, the energy-saving fan adapt to cooling needs and can be intelligently networked with the device logic.
Features
- Cable connection with 2 flat plugs 2.8 x 0.5 mm
- Protected against overload by thermal switch
- Direction of rotation left, viewed on the rotor
- Material housing: metal
Technical specifications
| Ausführung | AC-Axiallüfter | |
| Breite | 127 mm | |
| Drehzahl | 3100 1/min | |
| Höhe | 127 mm | |
| Lagerart | Kugellager | |
| Leistungsaufnahme | 17 W | |
| Nennspannung | 115 V | |
| Schalldruckpegel | 47 db | |
| Tiefe | 38 mm | |
| Volumenstrom | 206 m³/h |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
