612 F | ebm-papst

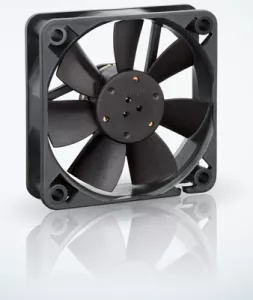

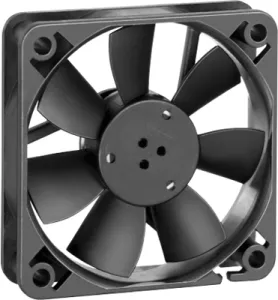

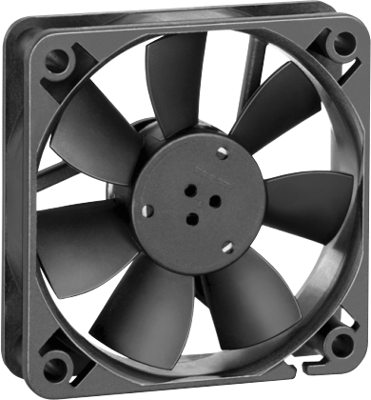

DC axial fan, 12 V, 60 x 60 x 15 mm, 29 m³/h, 27 dB, sintec slide bearing, ebm-papst 612 F
Unit Price (€ / pc.)
30.3450 € *
Available: 53 pcs.
Leadtime: 2 Weeks **
Total Price:
30.35 € *
Price list
Quantity
Price per unit*
1 pcs.
30.3450 €
10 pcs.
28.2030 €
25 pcs.
25.9420 €
50 pcs.
23.6215 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, 612 F, EBM-PAPST
The 612 F is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.
Features
- Very pressure stiff characteristic for high volume flow at high back pressure
- Protected against reverse polarity and blocking
- Direction of rotation left, viewed on the rotor
- Material housing: glass fiber reinforced plastic PBT
Technical specifications
| Version | DC axial fan | |
| Width | 60 mm | |
| speed | 3900 1/min | |
| Height | 60 mm | |
| Type of bearing | sintec slide bearing | |
| Power consumption | 1 W | |
| Rated voltage | 12 V | |
| Sound pressure level | 27 db | |
| Depth | 15 mm | |
| Volume flow | 29 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
