612 FH | ebm-papst

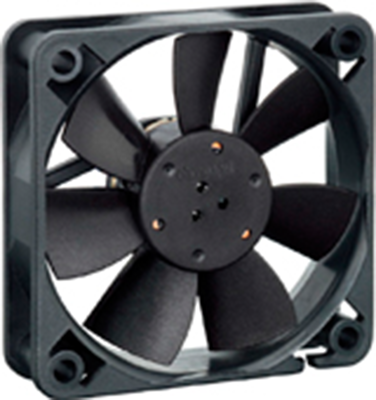

DC axial fan, 12 V, 60 x 60 x 15 mm, 33 m³/h, 31 dB, sintec slide bearing, ebm-papst 612 FH
Unit Price (€ / pc.)
22.2887 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
DC Axial fan, 612 FH, EBM-PAPST
The 612 FH is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.
Features
- Cable connection is with single strands AWG 28 and is stripped and tinned
- Protected against reverse polarity and blocking
- Direction of rotation left, viewed on the rotor
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Version | DC axial fan | |
| Width | 60 mm | |
| speed | 4500 1/min | |
| Height | 60 mm | |
| Type of bearing | sintec slide bearing | |
| Power consumption | 1.5 W | |
| Rated voltage | 12 V | |
| Sound pressure level | 31 db | |
| Depth | 15 mm | |
| Volume flow | 33 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
