612 NGLE | ebm-papst

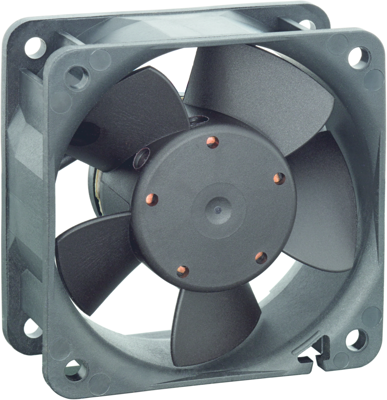

DC axial fan, 12 V, 60 x 60 x 25 mm, 21 m³/h, 16 dB, slide bearing, ebm-papst 612 NGLE

Order No.: 88B801
EAN: 4099889479713
MPN:
612 NGLE
9292206177
Series: 600 N
ebm-papst
612 NGLE ebm-papst Axial Fans
Image may differ
Unit Price (€ / pc.)
23.3002 € *
Available: 48 pcs.
Leadtime: 2 Weeks **
Total Price:
23.30 € *
Price list
Quantity
Price per unit*
1 pcs.
23.3002 €
10 pcs.
21.4438 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC Axial fan, 612 NGLE, EBM-PAPST

The 612 NGLE is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.

Features

  • Cable connection is with single strands AWG 22 and is stripped and tinned
  • Protected against reverse polarity and blocking
  • Direction of rotation right, viewed on the rotor
  • Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
Version DC axial fan
Width 60 mm
speed 2500 1/min
Height 60 mm
Type of bearing slide bearing
Power consumption 0.6 W
Rated voltage 12 V
Sound pressure level 16 db
Depth 25 mm
Volume flow 21 m³/h
Logistics
Country of origin HU
Customs tariff number 84145925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
