612 NGMLE | ebm-papst
DC axial fan, 12 V, 60 x 60 x 25 mm, 25 m³/h, 19 dB, slide bearing, ebm-papst 612 NGMLE
Unit Price (€ / pc.)
42.8043 € *
Available: 50 pcs.
Leadtime: 6 Weeks **
Total Price:
42.80 € *
Price list
Quantity
Price per unit*
1 pcs.
42.8043 €
5 pcs.
40.2220 €
15 pcs.
38.6869 €
50 pcs.
36.9852 €
150 pcs.
35.4382 €
*incl. VAT plus shipping costs
**Subject to prior sale

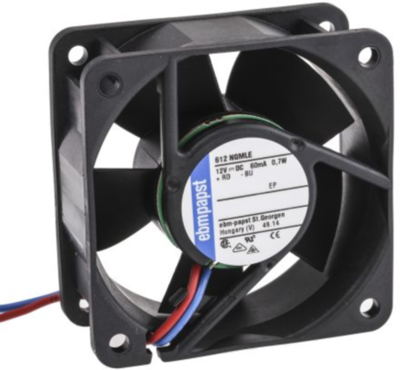

DC Axial fan, 612 NGMLE, EBM-PAPST
The 612 NGMLE is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.
Features
- Cable connection is with single strands AWG 22 and is stripped and tinned
- Protected against reverse polarity and blocking
- Direction of rotation clockwise, viewed toward rotor
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Breite | 60 mm | |
| Drehzahl | 3000 1/min | |
| Höhe | 60 mm | |
| Lagerart | Gleitlager | |
| Leistungsaufnahme | 0.7 W | |
| Nennspannung | 12 V | |
| Schalldruckpegel | 19 db | |
| Tiefe | 25 mm | |
| Volumenstrom | 25 m³/h |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
