612 NGNI | ebm-papst

DC axial fan, 12 V, 60 x 60 x 25 mm, 41 m³/h, 35 dB, sintec slide bearing, ebm-papst 612 NGNI

Order No.: 90B1032
EAN: 4099889480368
MPN:
612 NGNI
9292206043
Series: 600 N
ebm-papst
612 NGNI ebm-papst Axial Fans
Image may differ
Unit Price (€ / pc.)
57.4294 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
57.43 € *
Price list
Quantity
Price per unit*
1 pcs.
57.4294 €
5 pcs.
54.5496 €
10 pcs.
50.7178 €
50 pcs.
47.1835 €
100 pcs.
39.7817 €
*incl. VAT plus shipping costs
**Subject to prior sale

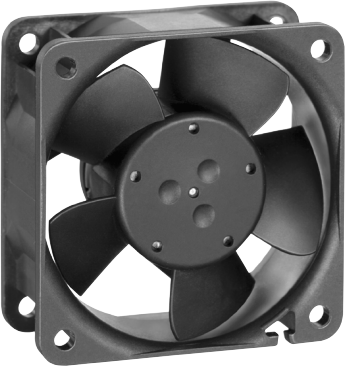

DC Axial fan, 612 NGNI, EBM-PAPST

The 612 NGNI is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.

Features

  • Cable connection is with single strands AWG 22 and is stripped and tinned
  • Protected against reverse polarity and blocking
  • Direction of rotation right, viewed on the rotor
  • Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
Version DC axial fan
Width 60 mm
speed 5100 1/min
Height 60 mm
Type of bearing sintec slide bearing
Power consumption 2 W
Rated voltage 12 V
Sound pressure level 35 db
Depth 25 mm
Volume flow 41 m³/h
Logistics
Country of origin HU
Customs tariff number 84145925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
