614 NHH | ebm-papst
DC axial fan, 24 V, 60 x 60 x 25 mm, 56 m³/h, 41 dB, ball bearing, ebm-papst 614 NHH
Unit Price (€ / pc.)
58.0244 € *
Available: 9 pcs.
Next delivery: 50 pcs. on 2025-01-28
Leadtime: 3 Weeks **
Total Price:
58.02 € *
Price list
Quantity
Price per unit*
1 pcs.
58.0244 €
5 pcs.
54.5377 €
15 pcs.
52.4671 €
50 pcs.
50.1347 €
150 pcs.
48.0522 €
*incl. VAT plus shipping costs
**Subject to prior sale

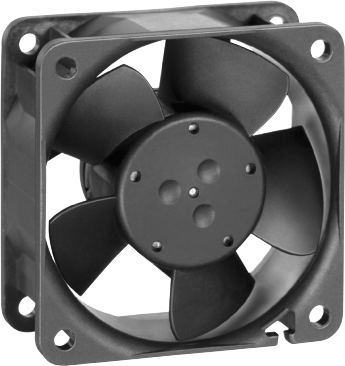

DC Axial fan, 614 NHH, EBM-PAPST
The 614 NHH is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Cable connection is with single strands AWG 22 and is stripped and tinned
- Protected against reverse polarity and blocking
- Direction of rotation right, viewed on the rotor
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Version | DC axial fan | |
| Width | 60 mm | |
| speed | 6850 1/min | |
| Height | 60 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 2.9 W | |
| Rated voltage | 24 V | |
| Sound pressure level | 41 db | |
| Depth | 25 mm | |
| Volume flow | 56 m³/h |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
