614NL | ebm-papst
DC axial fan, 24 V, 60 x 60 x 25 mm, 21 m³/h, 16 dB, ball bearing, ebm-papst 614NL
Unit Price (€ / pc.)
26.8464 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

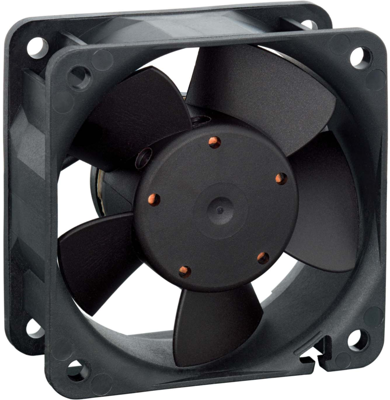

DC Axial fan, 614NL, EBM-PAPST
The 614NL is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Cable connection is with single strands AWG 22 and is stripped and tinned
- Protected against reverse polarity and blocking
- Direction of rotation right, viewed on the rotor
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Breite | 60 mm | |
| Drehzahl | 2500 1/min | |
| Höhe | 60 mm | |
| Lagerart | Kugellager | |
| Leistungsaufnahme | 0.8 W | |
| Nennspannung | 24 V | |
| Schalldruckpegel | 16 db | |
| Tiefe | 25 mm | |
| Volumenstrom | 21 m³/h |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
