622 HH | ebm-papst

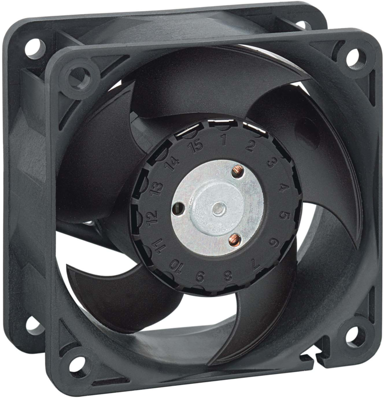

DC axial fan, 12 V, 60 x 60 x 25 mm, 56 m³/h, 43 dB, ball bearing, ebm-papst 622 HH
Unit Price (€ / pc.)
27.4652 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
DC Axial fan, 622 HH, EBM-PAPST
The 622 HH is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Max. torque when mounted across both mounting wire outlet corner is 10 Ncm
- Insulation diameter 1,5 mm
Technical specifications
| Version | DC axial fan | |
| Width | 60 mm | |
| speed | 8200 1/min | |
| Height | 60 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 3.5 W | |
| Rated voltage | 12 V | |
| Sound pressure level | 43 db | |
| Depth | 25 mm | |
| Volume flow | 56 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
