622 M | ebm-papst
DC axial fan, 12 V, 60 x 60 x 25 mm, 30 m³/h, 29 dB, ball bearing, ebm-papst 622 M
Unit Price (€ / pc.)
26.8464 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

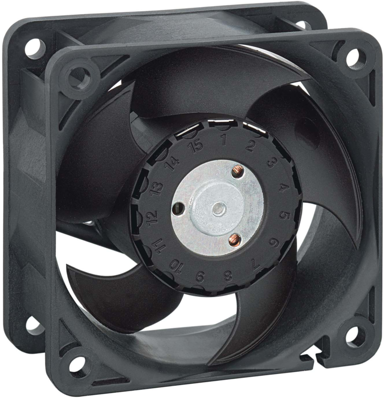

DC Axial fan, 622 M, EBM-PAPST
The 622 M is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Max. torque when mounted across both mounting wire outlet corner is 10 Ncm
- Insulation diameter 1,70 mm
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Breite | 60 mm | |
| Drehzahl | 4550 1/min | |
| Höhe | 60 mm | |
| Lagerart | Kugellager | |
| Leistungsaufnahme | 1 W | |
| Nennspannung | 12 V | |
| Schalldruckpegel | 29 db | |
| Tiefe | 25 mm | |
| Volumenstrom | 30 m³/h |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
