624/2 HH | ebm-papst

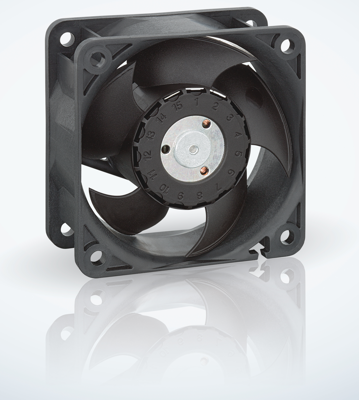

DC axial fan, 24 V, 60 x 60 x 25 mm, 56 m³/h, 43 dB, ball bearing, ebm-papst 624/2 HH
Unit Price (€ / pc.)
61.4278 € *
Available: 91 pcs.
Leadtime: 2 Weeks **
Total Price:
61.43 € *
Price list
Quantity
Price per unit*
1 pcs.
61.4278 €
5 pcs.
57.7388 €
15 pcs.
55.5254 €
50 pcs.
53.0740 €
150 pcs.
50.8606 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, 624/2 HH, EBM-PAPST
The 624/2 HH is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Cable connection is with single strands AWG 22 and is stripped and tinned
- Protected against reverse polarity and blocking
- Direction of rotation right, viewed on the rotor
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Version | DC axial fan | |
| Width | 60 mm | |
| speed | 8200 1/min | |
| Height | 60 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 3.6 W | |
| Rated voltage | 24 V | |
| Sound pressure level | 43 db | |
| Depth | 25 mm | |
| Volume flow | 56 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
