6314/2 NP | ebm-papst

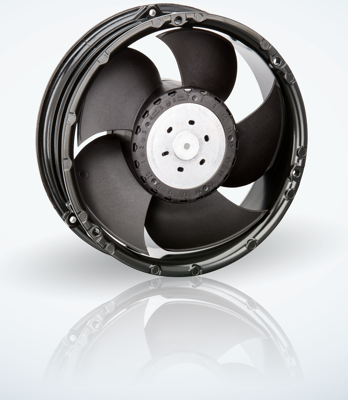

DC axial fan, 24 V, 172 x 172 x 51 mm, 470 m³/h, 56 dB, ball bearing, ebm-papst 6314/2 NP

Order No.: 90B231
EAN: 4099889483826
MPN:
6314/2 NP
9695480210
Series: 6300
6314/2 NP ebm-papst Axial Fans
Image may differ
Unit Price (€ / pc.)
260.3363 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
260.34 € *
Price list
Quantity
Price per unit*
1 pcs.
260.3363 €
3 pcs.
252.5180 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC Axial fan, 6314/2 NP, EBM-PAPST

The 6314/2 NP is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.

Features

  • Direction of rotation is clockwise while viewed towards the rotor
  • Airflow direction air outlet over struts
  • Max. torque when mounted across both mounting wire outlet corner is 600 Ncm
  • Material housing: metal
Technical specifications
Ausführung DC-Axiallüfter
Breite 172 mm
Drehzahl 4400 1/min
Höhe 172 mm
Lagerart Kugellager
Leistungsaufnahme 23 W
Nennspannung 24 V
Schalldruckpegel 56 db
Tiefe 51 mm
Volumenstrom 470 m³/h
Logistics
Ursprungsland HU
Zolltarifnummer 84145925
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
