6314/2TDHHP | ebm-papst

DC axial fan, 24 V, 172 x 172 x 51 mm, 710 m³/h, 69 dB, ball bearing, ebm-papst 6314/2TDHHP

Order No.: 90B1724
EAN: 4099889481990
MPN:
6314/2TDHHP
Series: 6300

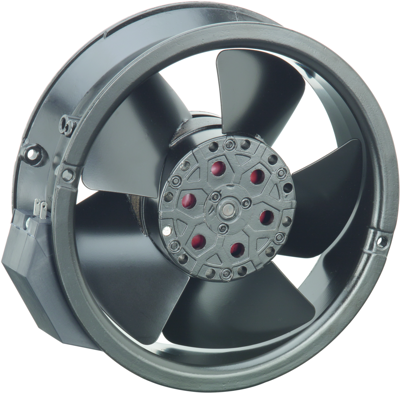

6314/2TDHHP ebm-papst Axial Fans Image 1

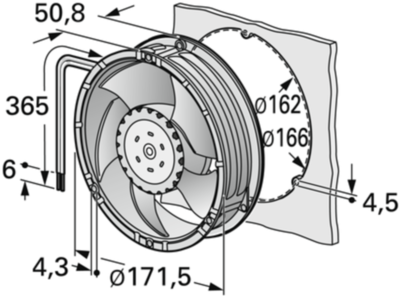

6314/2TDHHP ebm-papst Axial Fans Image 2
Image may differ
Unit Price (€ / pc.)
271.4628 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
271.46 € *
Price list
Quantity
Price per unit*
1 pcs.
271.4628 €
3 pcs.
263.3113 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC Axial fan, 6314/2TDHHP, EBM-PAPST

The 6314/2TDHHP is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.

Features

  • Connection cable via single strands AWG 18, 20 or AWG 22, TR 64, tachometer signal and control input AWG 22
  • Direction of rotation left, viewed on the rotor
  • Material housing: aluminum die casting
  • Material impeller glass fiber reinforced plastic (PA)
Technical specifications
Ausführung DC-Axiallüfter
Breite 172 mm
Drehzahl 7000 1/min
Höhe 172 mm
Lagerart Kugellager
Leistungsaufnahme 67 W
Nennspannung 24 V
Schalldruckpegel 69 db
Tiefe 51 mm
Volumenstrom 710 m³/h
Logistics
Ursprungsland DE
Zolltarifnummer 84145925
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 6/8/11
SVHC frei Yes
