6318/2TDHHP | ebm-papst
DC axial fan, 48 V, 172 x 172 x 51 mm, 710 m³/h, 69 dB, ball bearing, ebm-papst 6318/2TDHHP
Unit Price (€ / pc.)
243.9619 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
243.96 € *
Price list
Quantity
Price per unit*
1 pcs.
243.9619 €
3 pcs.
236.6434 €
*incl. VAT plus shipping costs
**Subject to prior sale

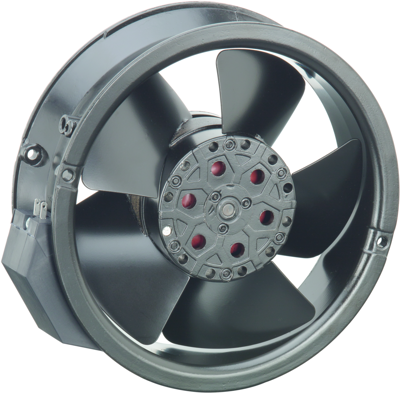

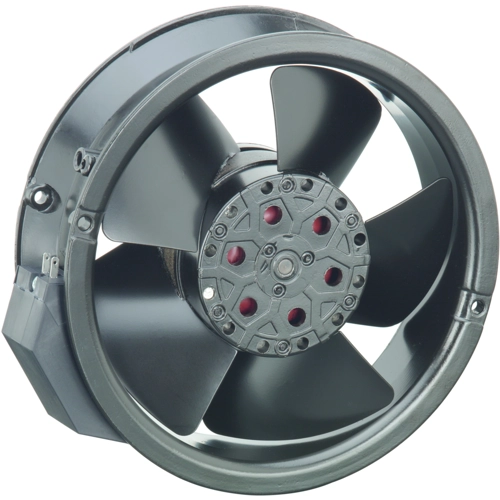

DC Axial fan, 6318/2TDHHP, EBM-PAPST
The 6318/2TDHHP is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.
Features
- Connection via single strands AWG 20, TR 64, bared and tin-plated
- Protected against reverse polarity and blocking
- Very rigid compression curve for high air flow at high counterpressure
- Material impeller glass fiber reinforced plastic (PA)
Technical specifications
| Version | DC axial fan | |
| Width | 172 mm | |
| speed | 7000 1/min | |
| Height | 172 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 67 W | |
| Rated voltage | 48 V | |
| Sound pressure level | 69 db | |
| Depth | 51 mm | |
| Volume flow | 710 m³/h |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
